KY TYPE 10R, KY TYPE 10T, John Crane TYPE 10R, John Crane TYPE 10T, Teflon Bellow Mechanical Seals
Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC)
Rotary Ring (Teflon/SiC/SSiC)
Secondary Seal (Teflon)
Spring and Metal Part (SS304/SS316)
Working Conditions:
Mediums: Sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid, and nitric acid with various degrees, etc.
Temperature: ≤120°C
Pressure: ≤0.5MPa
Speed: ≤ 10 m/Sec
If you have any questions, please send us an EMAIL about your technical applications.

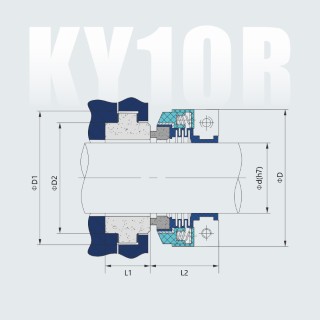

| Part Numbers | d | D | D1 | D2 | L1 | L2 |
| KY TYPE 10R / 10T-1" | 25.4 | 60 | 54 | 42.86 | 17.6 | 33.2 |
| KY TYPE 10R / 10T-1 1/8" | 28.6 | 67 | 65 | 50.8 | 27 | 36.2 |
| KY TYPE 10R / 10T-1 1/4" | 31.75 | 69 | 68 | 53.98 | 27 | 37.2 |
| KY TYPE 10R / 10T-1 3/8" | 34.93 | 72 | 71 | 57.15 | 27 | 38.2 |
| KY TYPE 10R / 10T-1 1/2" | 38.1 | 76 | 78 | 63.5 | 27 | 38.2 |
| KY TYPE 10R / 10T-1 5/8" | 41.28 | 80 | 81 | 66.68 | 27 | 40.2 |
| KY TYPE 10R / 10T-1 3/4" | 44.45 | 84 | 84 | 69.85 | 27 | 40.2 |
| KY TYPE 10R / 10T-1 7/8" | 47.63 | 86 | 87 | 73.03 | 27 | 43.2 |
| KY TYPE 10R / 10T-2" | 50.8 | 90 | 97 | 79.38 | 33.3 | 43.2 |
