Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton/Teflon)
Spring and Metal Part (SS304/SS316)
Working Conditions:
Mediums: Petroleum, chemical solvents, weak and medium corrosion, etc.
Temperature: -40°C~250°C
Pressure: ≤2.5MPa
Speed: ≤ 20 m/Sec
Download KY TYPE 59B, KY TYPE 58B, John Crane TYPE 59B, John Crane TYPE 58B, PTFE Wedge Mechanical Seals.pdf
If you have any questions, please send us an EMAIL about your technical applications.

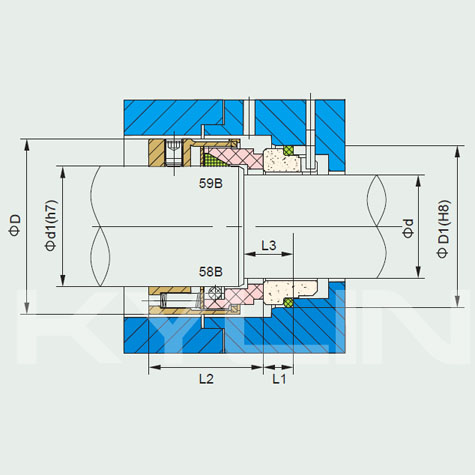

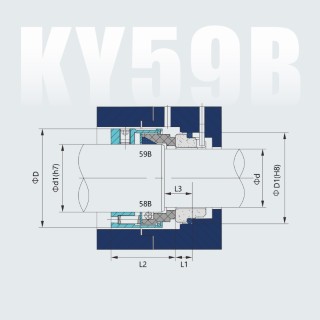

Part Numbers | d | d1 | D | D1 | L1 | L2 | L3 |
KY TYPE 59B / 58B-14 | 14 | 18 | 32 | 25 | 12 | 30.7 | 18 |
KY TYPE 59B / 58B-16 | 16 | 20 | 34 | 27 | 12 | 30.7 | 18 |
KY TYPE 59B / 58B-18 | 18 | 22 | 36 | 33 | 13.5 | 31.7 | 20 |
KY TYPE 59B / 58B-20 | 20 | 24 | 38 | 35 | 13.5 | 31.7 | 20 |
KY TYPE 59B / 58B-22 | 22 | 26 | 40 | 37 | 13.5 | 31.7 | 20 |
KY TYPE 59B / 58B-24 | 24 | 28 | 42 | 39 | 13.5 | 34.4 | 20 |
KY TYPE 59B / 58B-25 | 25 | 30 | 44 | 40 | 13 | 34.7 | 20 |
KY TYPE 59B / 58B-28 | 28 | 33 | 47 | 43 | 12.5 | 37.7 | 20 |
KY TYPE 59B / 58B-30 | 30 | 35 | 49 | 45 | 12 | 38.2 | 20 |
KY TYPE 59B / 58B-32 | 32 | 38 | 54 | 48 | 12 | 38.2 | 20 |
KY TYPE 59B / 58B-33 | 33 | 38 | 54 | 48 | 12 | 38.2 | 20 |
KY TYPE 59B / 58B-35 | 35 | 40 | 56 | 50 | 12 | 38.2 | 20 |
KY TYPE 59B / 58B-38 | 38 | 43 | 59 | 56 | 13 | 39.7 | 23 |
KY TYPE 59B / 58B-40 | 40 | 45 | 61 | 58 | 13 | 39.7 | 23 |
KY TYPE 59B / 58B-43 | 43 | 48 | 64 | 61 | 13 | 39.7 | 23 |
KY TYPE 59B / 58B-45 | 45 | 50 | 66 | 63 | 13 | 39.7 | 23 |
KY TYPE 59B / 58B-48 | 48 | 53 | 69 | 66 | 13 | 39.7 | 23 |
KY TYPE 59B / 58B-50 | 50 | 55 | 71 | 70 | 13.5 | 44.2 | 25 |
KY TYPE 59B / 58B-53 | 53 | 58 | 78 | 73 | 13.5 | 44.2 | 25 |
KY TYPE 59B / 58B-55 | 55 | 60 | 80 | 75 | 13.5 | 44.2 | 25 |
KY TYPE 59B / 58B-58 | 58 | 63 | 83 | 78 | 13.5 | 49.2 | 25 |
KY TYPE 59B / 58B-60 | 60 | 65 | 85 | 80 | 13.5 | 49.2 | 25 |
KY TYPE 59B / 58B-63 | 63 | 68 | 88 | 83 | 13.5 | 49.2 | 25 |
KY TYPE 59B / 58B-65 | 65 | 70 | 90 | 85 | 13.5 | 49.2 | 25 |
KY TYPE 59B / 58B-70 | 70 | 75 | 95 | 92 | 14.5 | 55.7 | 28 |
KY TYPE 59B / 58B-75 | 75 | 80 | 104 | 97 | 14.5 | 55.7 | 28 |
KY TYPE 59B / 58B-80 | 80 | 85 | 109 | 105 | 15 | 55.2 | 28 |
KY TYPE 59B / 58B-85 | 85 | 90 | 114 | 110 | 15 | 60.2 | 28 |
KY TYPE 59B / 58B-90 | 90 | 95 | 119 | 115 | 15 | 60.2 | 28 |
KY TYPE 59B / 58B-95 | 95 | 100 | 124 | 120 | 15 | 60.2 | 28 |
KY TYPE 59B / 58B-100 | 100 | 105 | 129 | 125 | 15 | 60.2 | 28 |
Download the 2015 Mechanical Seals Catalogue, Seal Faces & Shaft Bushings Catalogue, and Armor Ceramic Tiles Catalogue.
