KY TYPE 216, Elastomer Bellow Shaft Seals

Combined Materials:
Stationary Ring (SiC/SSiC/TC)
Rotary Ring (SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Retainer (Steel and plastic or Cast Aluminum Alloy).

Working Conditions:
Mediums: Water, oil, and weakly-corrosive mediums.
Temperature: -20°C~200°C
Pressure: ≤0.5MPa
Speed: ≤ 5 m/Sec

Download KY TYPE KY216, Elastomer Bellow Shaft Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

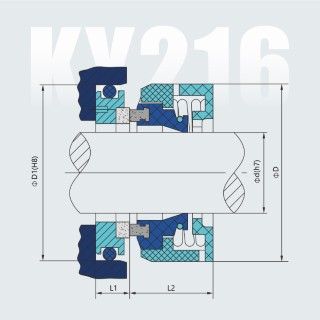

Part Numbers	d	D	D1	L1	L2
KY TYPE 216-20	20	42.5	55.5	11	25.7
KY TYPE 216-22	22	47	45.5	9	23.8
KY TYPE 216-25	25	54	50.5	10	28.8
KY TYPE 216-28	28	54	50.5	10	28.8
KY TYPE 216-30	30	54	50.5	10	28.8
KY TYPE 216-35	35	62	60.5	11	29
