KY TYPE 152, Teflon Bellow Mechanical Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC)
Rotary Ring (Teflon/SiC/SSiC)
Secondary Seal (Teflon)
Spring and Metal Part (SS304/SS316)

Working Conditions:
Mediums: Sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid,and nitric acid with various degrees, etc.
Temperature: ≤120°C
Pressure: ≤0.5MPa
Speed: ≤ 10 m/Sec

Download KY TYPE 152, Teflon Bellow Mechanical Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

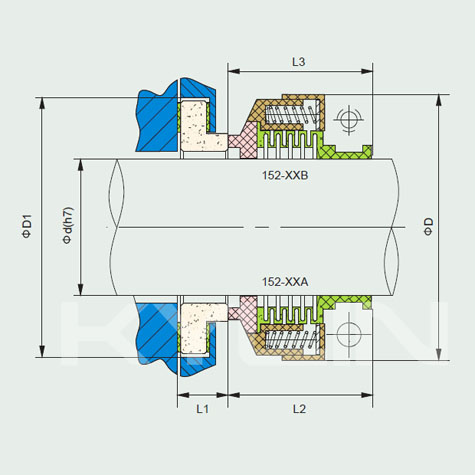

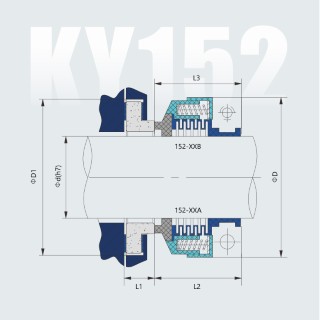

Part Numbers	d	D	D1	L1	L2	L3
KY TYPE 152-25	25	60	48	13	42	45
KY TYPE 152-30	30	67	53	13	42	45
KY TYPE 152-35	35	72	58	13	42	45
KY TYPE 152-40	40	78	63	13	42	45
KY TYPE 152-45	45	84	68	16	44	46
KY TYPE 152-50	50	88	73	16	46	46
KY TYPE 152-55	55	95	78	16	46	46
KY TYPE 152-60	60	100	83	17	46	46
KY TYPE 152-65	65	105	88	17	46	46
