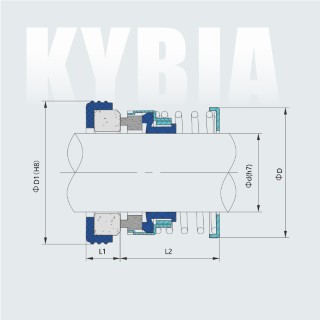

KY TYPE BIA, Elastomer Bellow Shaft Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS316)

Working Conditions:
Mediums: Water, oil, and weakly-corrosive mediums.
Temperature: -20°C~150°C
Pressure: ≤0.8MPa
Speed: ≤ 10 m/Sec

Download KY TYPE BIA, Elastomer Bellow Shaft Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

Part Numbers	d	D	D1	L1	L2
KY TYPE BIA-14	14	27.5	30	5	18.7
KY TYPE BIA-16	16	28.5	32	5	21
KY TYPE BIA-18	18	31.2	35	7.5	22.5
KY TYPE BIA-20	20	31.7	35	8	21
KY TYPE BIA-24	24	40.2	39	8	25.5
KY TYPE BIA-25	25	40.2	40	8	25.5
KY TYPE BIA-28	28	44.1	43	8	25.5
KY TYPE BIA-30	30	45.1	45	9	25.5
KY TYPE BIA-32	32	49	48	9	33.5
KY TYPE BIA-33	33	49	48	9	33.5
KY TYPE BIA-35	35	50.2	50	9	33.5
KY TYPE BIA-38	38	55.3	56	9	33.5
KY TYPE BIA-40	40	57	58	9	33.5
KY TYPE BIA-43	43	60.7	61	9.5	36.5
KY TYPE BIA-45	45	62.5	63	9.5	38
KY TYPE BIA-48	48	66.5	66	9.5	38
KY TYPE BIA-50	50	68.6	70	9.5	38
KY TYPE BIA-53	53	70.8	73	9.5	41
KY TYPE BIA-55	55	72.4	75	9.5	41
KY TYPE BIA-58	58	80	78	9.5	42
KY TYPE BIA-60	60	83	80	9.5	42
KY TYPE BIA-65	65	87.2	85	9.5	43
KY TYPE BIA-70	70	91.6	92	11	45
KY TYPE BIA-75	75	99.4	97	12	48
KY TYPE BIA-80	80	104.6	104	12	55
KY TYPE BIA-85	85	111	109	12	64.2
KY TYPE BIA-90	90	113	114	12	66.2
